µChiller process

UCHBP000P0* UCHBD*00P1*
µChiller process
  • General characteristics

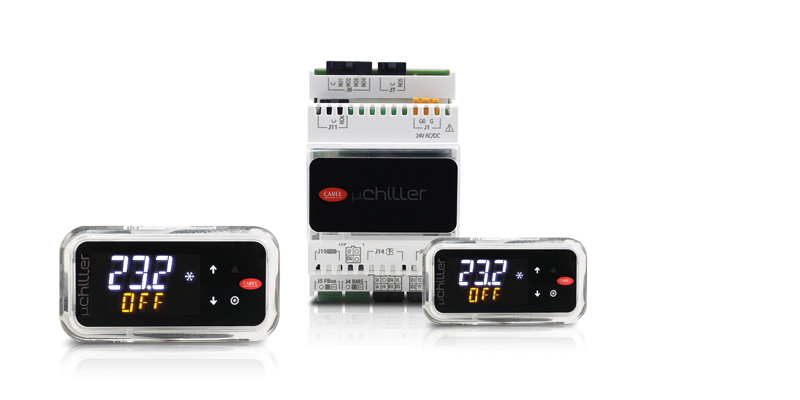

    μChiller Process is the CAREL solution for complete management of air/water and water/water process chillers.

    The maximum configuration manages 2 compressors in a single circuit. The distinctive element of μChiller Process is complete control of high-efficiency units through integrated management of two electronic valves (ExV) - expansion and hot gas bypass - and brushless BLDC compressors.This guarantees a prompt response of the compressor as well as higher protection and reliability, without however neglecting high unit efficiency.

    The user terminal allows wireless connectivity with mobile devices and is built-in on the panel mounted models, or sold separately on DIN rail mounted models. The CAREL “APPLICA” app can be used to download and send operating logs relating to serious alarm situations that occur on the unit.

  • Plus

    Usability

    • Hot gas bypass and tank management.
    • Two user pumps.

    Efficiency and reliability

    • Complete control of the compressor envelope, ensuring maximum reliability.
    • Advanced management of DC inverter compressors with EEV synchronisation and protection functions.

    Wireless connectivity with APPLICA

    • Innovative graphic interface.
    • Quick unit commissioning.
    • Download and send data logs on alarm situations.

    Refrigerants

    Compatibility with natural refrigerants and low-GWP mixtures to meet the needs of unit manufacturers in terms of regulations such as F-Gas, EPA, ...





Documentation

Technical

  • Technical Leaflets
    Code Description Language Date * Release
    Code +0500147IE

    Description μChiller Process Controllo elettronico per chiller di processo / Electronic control for process chiller

    Language ENG  ITA

    Date 18/11/2020

    Release 1.2

  • Manuals
    Code Description Language Date * Release
    Code +0300074IT

    Description μChiller Process Controllo per Chiller di processo

    Language ITA

    Date 26/10/2020

    Release 1.1

    Code +0300074EN

    Description μChiller Process Controller for process chillers

    Language ENG

    Date 26/10/2020

    Release 1.1

    Code +0300074DE

    Description μChiller Process Steuergerät für prozesstechnische Kältesätze

    Language GER

    Date 26/10/2020

    Release 1.1


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +3000212IT

    Description μchiller process: La soluzione per unità chiller nell’industria

    Language ITA

    Date 11/09/2020

    Release 1.0

    Code +3000212EN

    Description μchiller process: The solution for chillers in industry

    Language ENG

    Date 11/09/2020

    Release 1.0

    Code +3000212DE

    Description μchiller process: Die Lösung für industrielle Kältesätze

    Language GER

    Date 11/09/2020

    Release 1.0
