  • General characteristics

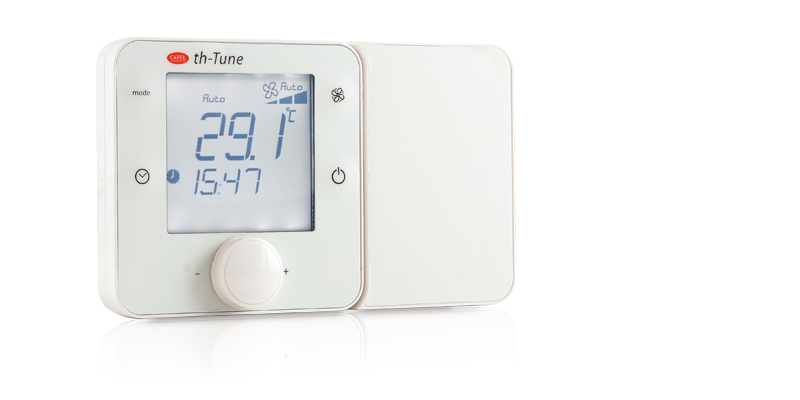

    th-Tune is the CAREL room terminal that allows users to control temperature and humidity in residential environments. Depending on the model, the terminal can be fitted with a temperature probe or temperature and humidity probe, while the power supply may be 230 Vac or 24 Vac/Vdc. th-Tune is compatible with the main flush-mounted switch boxes available on the market (IT, US, DE, CN).

    Temperature and humidity setting is simple and intuitive using the knob on the front with rotary encoder. th-Tune also lets users adjust some settings for the room controller, such as operating mode and time bands. Control and information displayed depend exclusively on the controller that th-Tune is connected to. The compact dimensions and elegant design make the terminal easy adaptable to all types of rooms. Connection to the pCO controller is available over the RS485 network using the Modbus protocol.



Documentation

Technical

  • 2D/3D drawings
    Code Description Language Date * Release
    Code 2d-3d th-tune Wall mounting

    Description 2D-3D drawings

    Language ALL

    Date 22/06/2015

    Release R0

    Code 2d-3d th-tune Flush mounting

    Description 2D-3D drawings

    Language ALL

    Date 22/06/2015

    Release R0

  • Technical Leaflets
    Code Description Language Date * Release
    Code +0500017AR

    Description AT*-th Tune Electronic controller for air-conditioning (wall mountng model)

    Language ARA  ENG

    Date 14/04/2011

    Release 1.1

    Code +0500017RU

    Description AT*-th Tune: Электронный контроллер для систем вентиляции и кондиционирования (настенный монтаж) / Electronic controller for air-conditioning (wall mountng model)

    Language ENG  RUS

    Date 13/04/2011

    Release 1.1

    Code +0500017IE

    Description AT*-th Tune Controllo elettronico per condizionamento (mod. a parete) / Electronic controller for air-conditioning (wall mountng model)

    Language ENG  ITA

    Date 13/04/2011

    Release 1.1

    Code +0500016RU

    Description AT* - th Tune: Электронный контроллер для систем вентиляции и кондиционирования (настенный монтаж) / Electronic controller for air-conditioning (fl ush-mount model)

    Language ENG  RUS

    Date 13/04/2011

    Release 1.2

    Code +0500016IE

    Description AT* - th Tune: Controllo elettronico per condizionamento (modello a incasso)/ Electronic controller for air-conditioning (fl ush-mount model)

    Language ENG  ITA

    Date 13/04/2011

    Release 1.2

    Code +0500016EZ

    Description AT* - th Tune: 空调电子控制器(嵌入式安装)/ Electronic controller for air-conditioning (flush-mount model)

    Language CHI  ENG

    Date 13/04/2011

    Release 1.2
