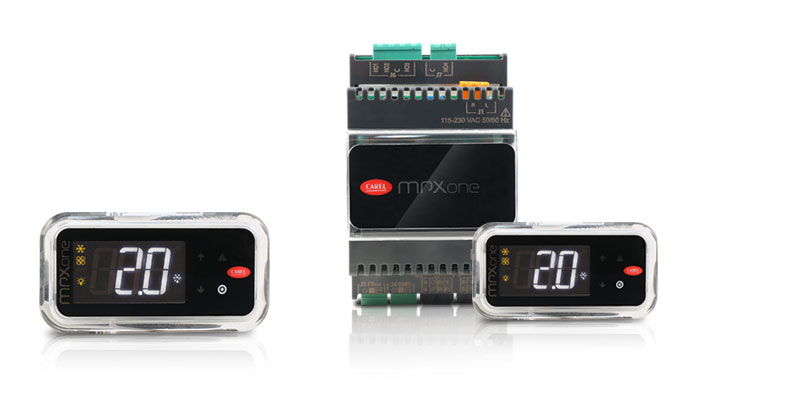

MPXone
General characteristics
MPXone is the series of controllers for supermarket refrigeration units that combines the ease of use of an entry-level controller, with the advanced performance typical of top-of-the-range models.
Designed on a flexible and scalable platform, this product is available in different versions (with panel or DIN rail mounting) each featuring an incremental level of performance. From standard management of a cabinet equipped with a thermostatic/solenoid valve, to integration of modulating devices such as fans and unipolar electronic valves (external driver or built-in option).
MPXone also stands out for the extension of the connectivity concept. Indeed, wireless connectivity is integrated using NFC and Bluetooth technologies, thus revolutionising the way of interacting with the controllers, via mobile devices.
The main features of MPXone include:
- Integrated BMS for connection to local monitoring systems;
- Management of local networks with Main/Secondary architecture, up to 10 devices;
- Advanced logic for the control of modulating devices, such as electronic valves, frequency-controlled VCC compressors, fans, rail heaters and antisweat heaters.
-
Plus
Energy efficiency
The management of modulating loads, such as VCC (frequency-controlled) compressors, 0-10 V fans, electronic expansion valves and Fieldbus devices, improves unit energy performance by adapting to the actual operating conditions.
System upgrades
The possibility to add management of an electronic valve via serial control by an external EVDice driver facilitates the upgrade of obsolete systems, without replacing the existing cabinets.
Optimal temperature stabilisation
Through precise and constant control of refrigerant flow, together with the most advanced software logic, the shelf life of goods can be extended, without reprocessing.
Simplified interaction
Controlling the unit has never been easier. The design and architecture of the app make access to control information, documentation and operating conditions intuitive and immediate. Everything at your fingertips.
Documentation
Technical
-
2D/3D drawings
* Entries are ordered by date
Code Description Language Date * Release Code 2d-3d_mpxONE panel.zip Description 2D-3D drawings Language ALL Date 26/01/2021 Release R2 Code 2d-3d_mpxONE display.zip Description 2D-3D drawuings Language ALL Date 26/01/2021 Release R2 Code 2d-3d_mpxONE DIN medium.zip Description 2D-3D drawings Language ALL Date 26/01/2021 Release Code 2d-3d_mpxONE DIN advanced.zip Description 2D-3D drawings Language ALL Date 26/01/2021 Release R2 -
Manuals
* Entries are ordered by date
Code Description Language Date * Release Code +030220615 Description VLSH Very Low SuperHeat Language ENG FRE ITA Date 28/03/2025 Release 1.0 Code +0300086FR Description MPXone Contrôleur électronique pour applications de réfrigération Language FRE Date 13/11/2023 Release 2.2 Code +0300086DE Description MPXone Elektronisches Steuergerät für kältetechnische Anwendungen Language GER Date 13/11/2023 Release 2.2 Code +0300086IT Description MPXone Controllo elettronico per applicazioni di refrigerazione Language ITA Date 13/11/2023 Release 2.2 Code +0300086EN Description MPXone Electronic control for refrigeration applications Language ENG Date 13/11/2023 Release 2.2 Code +0300086RU Description MPXone Электронное управление для холодильного оборудования Language RUS Date 13/11/2023 Release 2.2 -
Technical Leaflets
* Entries are ordered by date
Code Description Language Date * Release Code +0500142IE Description Terminale utente e display remoto per MPXone / User terminal and remote display for MPXone Language ENG ITA Date 16/05/2025 Release 1.2 Code +0500142EZ Description AX3000* 用户终端控制与远程显示装置MPXone / User terminal and remote display for MPXone Language CHI ENG Date 16/05/2025 Release 1.2 Code +0500142FD Description AX3000* Terminal utilisateur et affi cheur à distance pour MPXone / Bedienteil und Remote-Display für MPXone Language FRE GER Date 16/05/2025 Release 1.2 Code +0500142RU Description AX3000* Графический терминал для контроллера MPXone / User terminal and remote display for MPXone Language ENG RUS Date 16/05/2025 Release 1.2 Code +0500140FR Description MPXone Régulateur électronique pour applications de réfrigération commerciale centralisée Language FRE Date 09/10/2024 Release 1.7 Code +0500140EZ Description MPXone Language CHI Date 09/10/2024 Release 1.7 Code +0500140IT Description MPXone Controllo elettronico per applicazioni di refrigerazione commerciale centralizzate Language ITA Date 09/10/2024 Release 1.7 Code +0500140EN Description MPXone Electronic controller for centralised commercial refrigeration applications Language ENG Date 09/10/2024 Release 1.7 Code +0500140RU Description Электронный контроллер MPXone для централизованного управления холодильным оборудованием Language RUS Date 09/10/2024 Release 1.7 Code +0500138ZH Description MPXone ADVANCED高级版 ELECTRONIC CONTROLLER/电子控制器 Centralised commercial refrigeration applications with integrated EEV driver 集成 EEV 驱动器的集中式商业制冷应用 Language CHI ENG Date 15/01/2024 Release 1.4 Code +0500138IE Description MPXone ADVANCED Language ENG ITA Date 15/01/2024 Release 1.4 Code +050004232 Description EVD000RAC0: Modulo Ultracap per MPXone / Ultracap Module for MPXone Language ENG ITA Date 27/04/2021 Release 1.1
Commercial
-
Application Note
* Entries are ordered by date
Code Description Language Date * Release Code +4000076DE Description Anlagenmodernisierung - Modernes Design und Energieeffizienz für die Nachrüstung und Modernisierung von Bestandsanlagen. Language GER Date 11/02/2020 Release 1.0 Code +4000076IT Description Ammodernamento d’impianto: estetica all’avanguardia ed efficientamento energetico per il rinnovamento di impianti datati. Language ITA Date 11/02/2020 Release 1.0 Code +4000076EN Description System modernisation Cutting-edge aesthetics and energy efficiency for renovating outdated systems. Language ENG Date 11/02/2020 Release 1.0 -
Brochure
* Entries are ordered by date
Code Description Language Date * Release Code +3000163IT Description MPX - Connettività totale e alta efficienza per la gestione completa di unità frigorifere da supermercato Language ITA Date 29/05/2025 Release 3.5 Code +3000163EN Description MPX - Total connectivity and high efficiency for the complete management of supermarket refrigeration units Language ENG Date 29/05/2025 Release 3.5 Code +3000163PL Description MPXone - Pełne możliwości komunikacji i wysoka wydajność dla kompleksowego zarządzania urządzeniami chłodniczymi w supermarketach Language POL Date 29/05/2025 Release 3.5 Code +3000163ES Description MPX - Conectividad total y alta eficiencia para la gestión completa de unidades de refrigeración de supermercado Language SPA Date 29/05/2025 Release 3.5 Code +3000163PT Description MPXone - Conectividade total e alta eficiência para o gerenciamento completo de unidades frigoríficas de supermercados Language POR Date 29/05/2025 Release 3.5 Code +3000163DE Description mpx - Umfassende Konnektivität und hohe Leistungsfähigkeit für das Management von gewerblichen Kühlmöbeln Language GER Date 07/02/2023 Release 3.2 Code +3000163RU Description MPXone Language RUS Date 01/10/2018 Release 2.0 Code +3000163ZH Description Total connectivity and high efficiency for multiplex showcases Language CHI Date 01/10/2018 Release 2.0
Images
-
High resolution images
* Entries are ordered by date
Code Description Language Date * Release Code PH17LS1307-MPXone-range Description CAREL-Food Retail-Solutions for cabinets and cold rooms-MPXone Language ALL Date 21/09/2021 Release R.0 Code PH17LS1301-MPXone Description CAREL-Food Retail-Solutions for cabinets and cold rooms-MPXone Language ALL Date 21/09/2021 Release R.0 Code PH17LS1305-MPXone-din Description CAREL-Food Retail-Solutions for cabinets and cold rooms-MPXone Language ALL Date 21/09/2021 Release R.0 Code PH21LS1301-MPXone-built-in-driver-din Description CAREL-Food Retail-Solutions for cabinets and cold rooms-MPXone Language ALL Date 21/09/2021 Release R.0
