ir33

IR33*
ir33
  • General characteristics

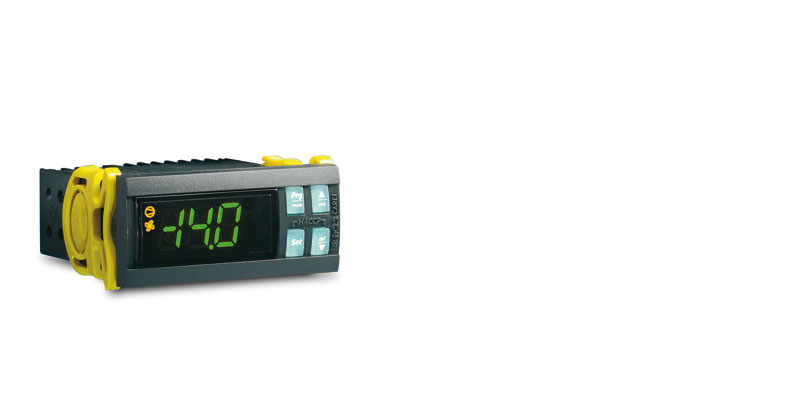

    ir33 represents the basic selection offered by CAREL for applications in refrigeration.
    A complete set of controls, from the single-relay version for static refrigerated units with normal temperature, with control only on the compressor, to the 4-relay version for ventilated, low temperature units, with compressor control, resistor or hot gas defrost, evaporation fans and multi-function auxiliary, available in several versions of power supply (12Vac, 12/24Vac, 115Vac, 230Vac and switching 15/230Vac).

    Most of the models are equipped with a 16A relay for compressor control and an 8A relay for defrost control, evaporation fans and the auxiliary output. Some models are also available with a 2Hp compressor relay.

    In addition to the common setting algorithms, ir33 has some additional features: "Direct" (cold) and "Reverse" (warm) operation with neutral zone, control of a second step regulated compressor, auxiliary evaporator control, condenser fan control, adjustment with supply and return probe with weighted average, display case/cell light control.
    For control of the parameters, CAREL offers for free a simple configuration software, called Visual Parameter Manager (VPM), downloadable from: ksa.carel.com


    Certifications:
    CE, UL, VDE, ATEX

    EN 13485, air, S,A,1, -30°C +30°C
    The ir33 series, equipped with standard CAREL NTC probe, meets the specifications of the EN 13485 standard (thermometers for measuring the air temperature for applications on storage and distribution units for chilled, frozen, deep-frozen/quick-frozen food and ice cream) set as mandatory for the storage of frozen and deep frozen food by the EC Regulation 37/2005 of January 12, 2005.



Documentation

Technical

  • Manuals
    Code Description Language Date * Release
    Code +030220447

    Description ir33 platform conexiones / connections

    Language ENG  SPA

    Date 31/05/2016

    Release 2.3

    Code +03C220445

    Description ir33 platform

    Language CHI

    Date 27/04/2011

    Release 2.3

    Code +030220445

    Description ir33 platform connessioni / connections

    Language ENG  ITA

    Date 27/04/2011

    Release 2.3

    Code +030220449

    Description ir33 platform

    Language RUS

    Date 16/06/2010

    Release 2.5

    Code +030220444

    Description ir33 platform

    Language SPA

    Date 16/06/2010

    Release 2.5

    Code +030220441

    Description ir33 platform

    Language ENG

    Date 16/06/2010

    Release 2.5

    Code +030220440

    Description ir33 platform

    Language ITA

    Date 16/06/2010

    Release 2.5

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050003061

    Description ir33: - Regolatore elettronico per unità frigorifere stand-alone/Elettronic controller for stand-alone refrigeration units

    Language ENG  ITA

    Date 02/02/2010

    Release 4.3


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +302235292

    Description New generation... ...continuité, innovation, design

    Language FRE

    Date 20/05/2008

    Release 2.0

  • Success Story
    Code Description Language Date * Release
    Code +4000063ES

    Description Complejo museístico de Castel Sant’Angelo Sistema de monitorización, control y humectación de las salas expositoras.

    Language SPA

    Date 18/10/2017

    Release 1.0

    Code +4000063EN

    Description Castel Sant’Angelo museum complex: Monitoring, control and humidification system in the exhibit rooms.

    Language ENG

    Date 18/10/2017

    Release 1.0

    Code +4000063DE

    Description Nationalmuseum Engelsburg System für Überwachung, Regelung und Befeuchtung der Ausstellungsräume

    Language GER

    Date 18/10/2017

    Release 1.0

    Code +4000063IT

    Description Polo Museale di Castel Sant’Angelo: Sistema di monitoraggio, controllo ed umidificazione delle sale espositive

    Language ITA

    Date 18/10/2017

    Release 1.0

    Code +4000026ES

    Description CAREL full green, sistema de CO2 transcrítico. Doble recuperación de calor y triple línea de aspiración en el sistema Carrefour de Aosta.

    Language SPA

    Date 23/09/2015

    Release 2.0

    Code +4000026FR

    Description CAREL full green, système CO2 transcritique. Double récupération de la chaleur et triple ligne d'aspiration dans le système Carrefour d'Aoste.

    Language FRE

    Date

    Release


Images

  • High resolution images
    Code Description Language Date * Release
    Code PH11LIR301-ir33

    Description ir33-CAREL-Refrigeration Parametric Controls-ir33 Series

    Language ALL

    Date 06/09/2021

    Release R.0
